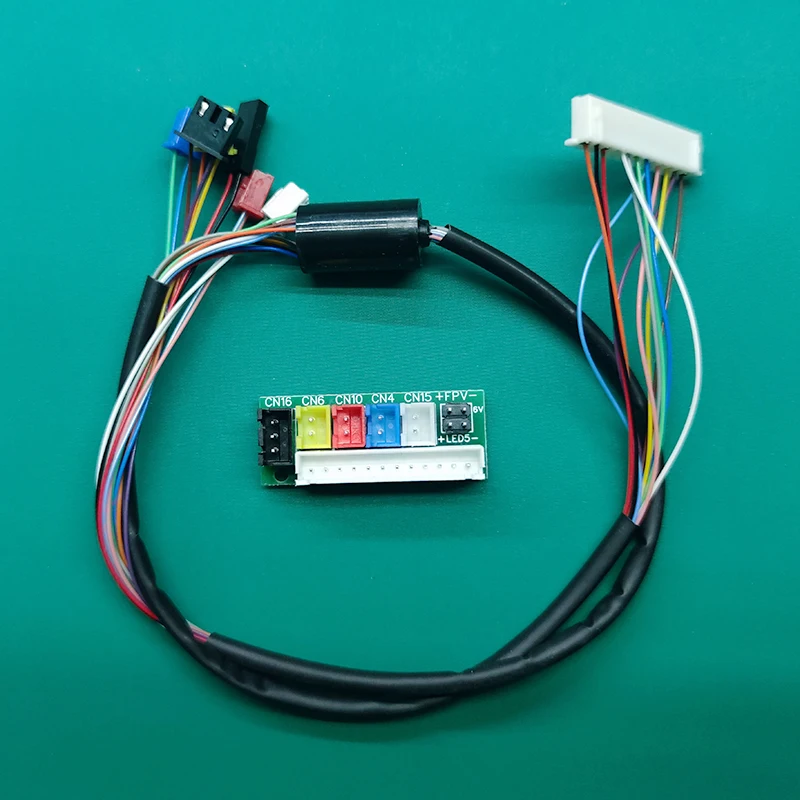

Slip Ring 6.0s/7.0 Verison 12 Wires for Henglong 1/16 Remote Control Tank Turret 360 Degree Rotating Upgrade Accessories

Note: 1. The socket can only be guaranteed to be compatible with the 12-wires electric slip ring of this link, and it cannot be guaranteed to be compatible with other link’s electric slip rings!

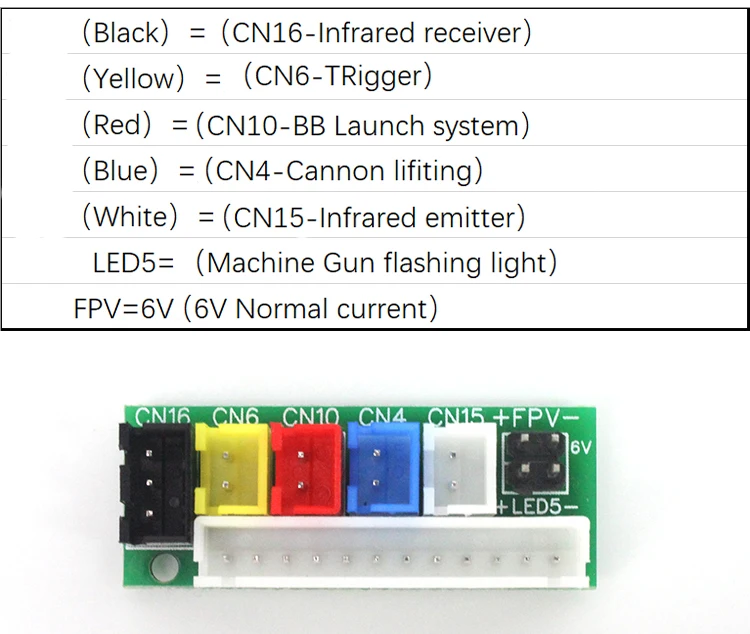

2. The only difference between version 6.0S and version 7.0 is the size of the 3 pins socket , so it is not universal. Please choose the corresponding version according to your needs. As for the socket definition, they are exactly the same, so the specific connecting method can refer to the 6.0S version of the tutorial below.

Take 1/16 tiger king as an example,

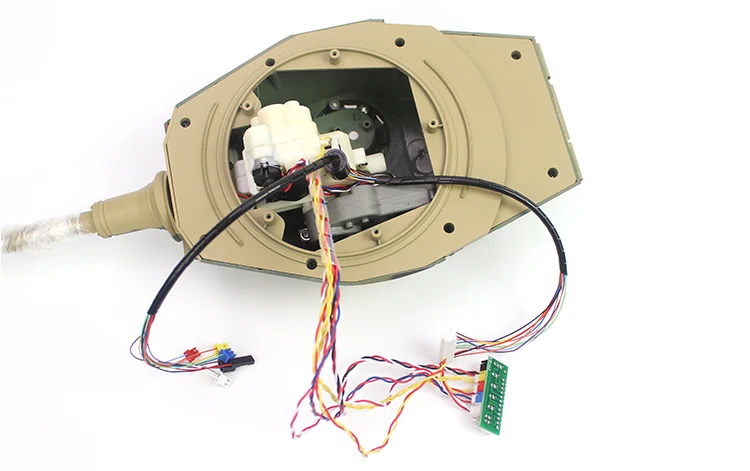

Step1, connect the plugs

Step2, Glue the outer wall of the slip ring to fix it.

           Arrange the wires

Step 3,

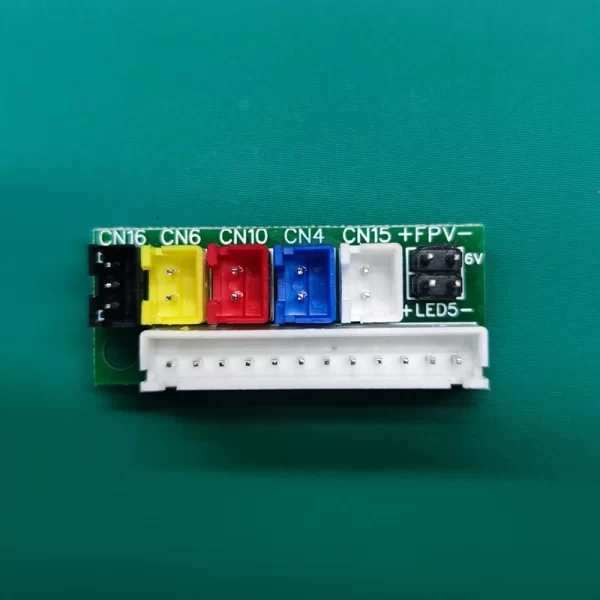

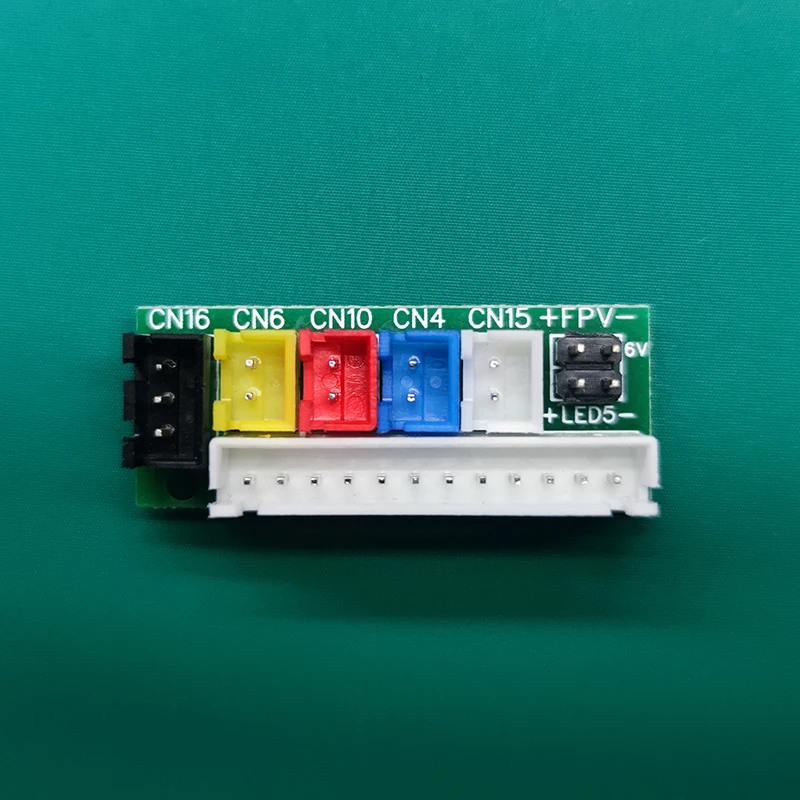

Use hot melt adhesive or double-sided adhesive, screws, etc., to fix the socket, and be careful not to affect the lifting of the barrel.

Step 4,

Install the modified gear and fix it. Insert the terminals of the slip ring to the motherboard.

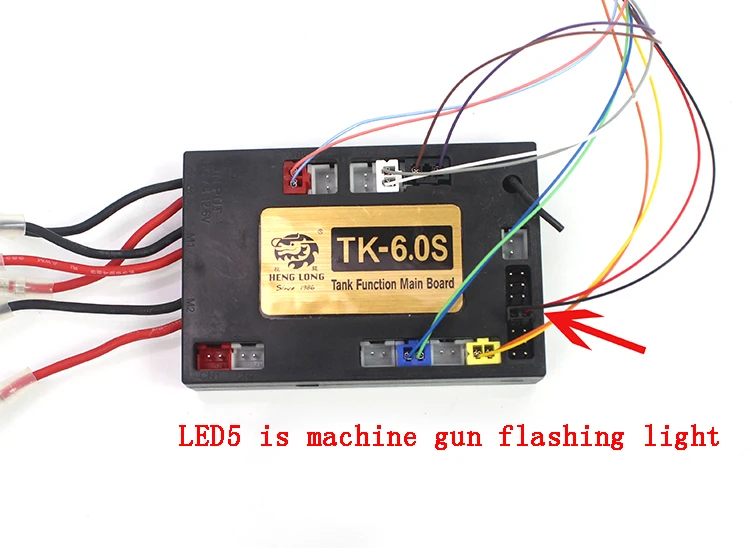

Note:  some tank’s machine gun lights are not installed on the turret, so please do not plug the red and black 2 wires of the electric slip ring

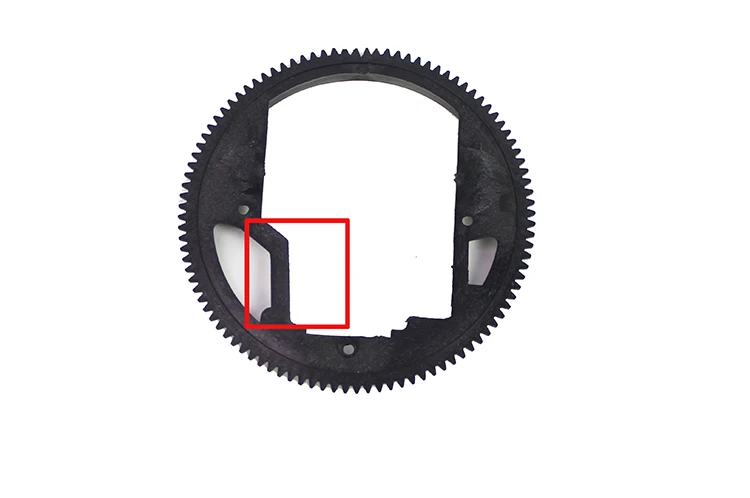

The bottom of the tower and the gear plate of some tanks may stuck the slip ring. Please cut off the corresponding place, such as HL tiger,

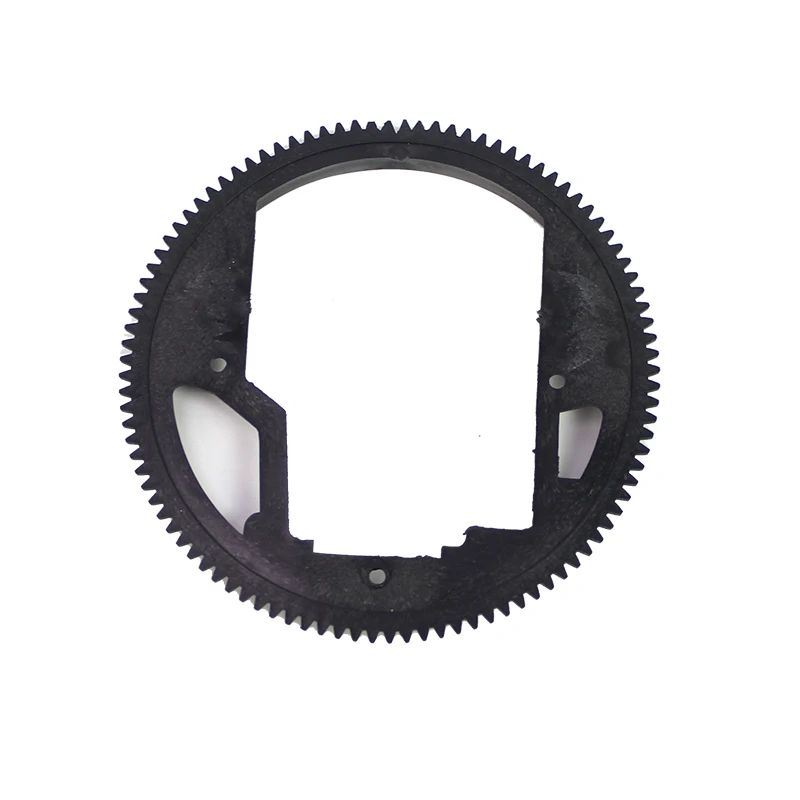

The small gear fit for 3818,3819,3838,3839,3848,3849,3858,3859,3878,3879,3898,3909

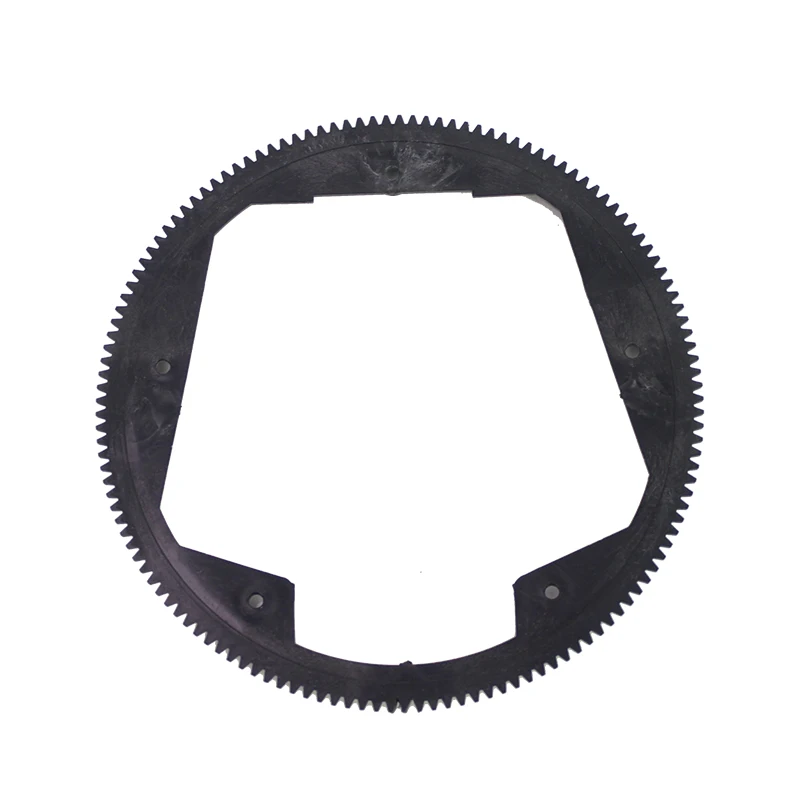

The big gear fit for 3888A,3889,3938,3939,3908,3918,3899A

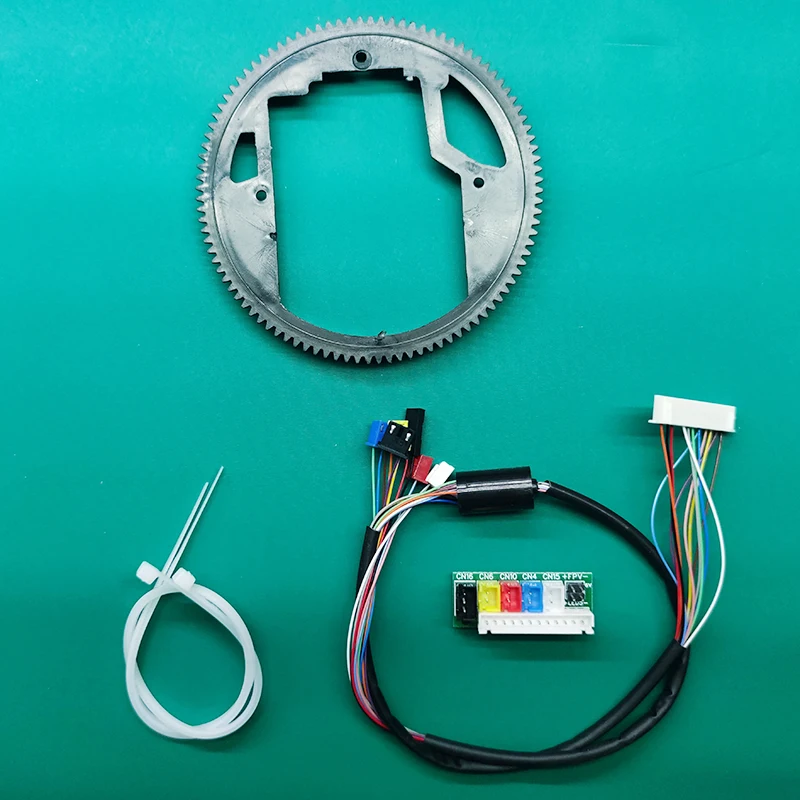

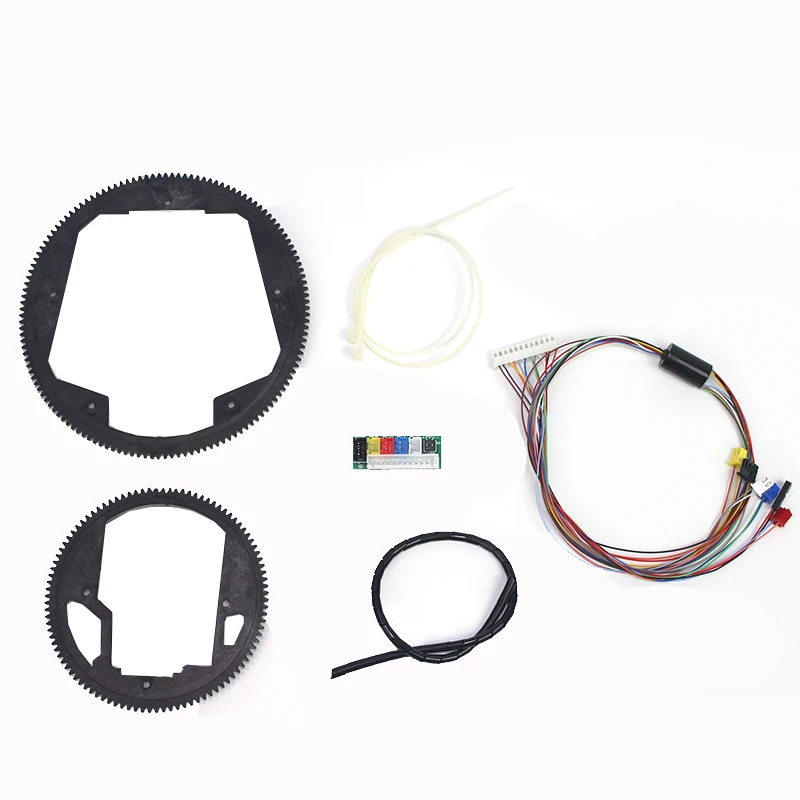

Package include items show in the option’s picture.
